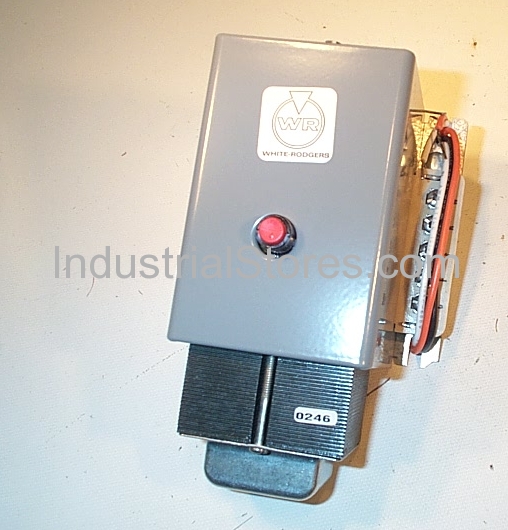

White-Rodgers 668-451 Kwik-Sensor Cad Cell Relay Oil Burner Control 2-Wire 45-Second Timer & External Transformer

White-Rodgers 668-451 Kwik-Sensor Cad Cell Relay Oil Burner Control 2-Wire 45-Second Timer & External Transformer
Images for general purposes only. Actual may be different than depicted.
White-Rodgers 668-451 Kwik-Sensor Cad Cell Relay Oil Burner Control 2-Wire 45-Second Timer & External Transformer

White-Rodgers 668-451 Kwik-Sensor Cad Cell Relay Oil Burner Control 2-Wire 45-Second Timer & External Transformer

SKU: 668-451
Rating:
* This Product is Now Obsolete
0
0
0
0

Replaces Intermittent Ignition Kwik-Sensor CAD Cell Relays on Oil Burner Systems with 15, 30 or 45 Second Safety Timing. Certain Types have Unique Signal-Lite Feature which Glows Whenever Safety Lock-Out Occurs

• Grey metal enclosure. • Line voltage safety switch eliminates burner run-on in event motor relay contacts weld closed. • Solid state flame detection circuitry is not affected by vibration or high or low ambient temperatures. Suitable for use from – 40 to 150°F (– 40 to 66°C) • Recycles upon momentary flame failure or power interruption.

Following are the Attached files for this product:

White-Rodgers 668-451 Oil Burner Control
