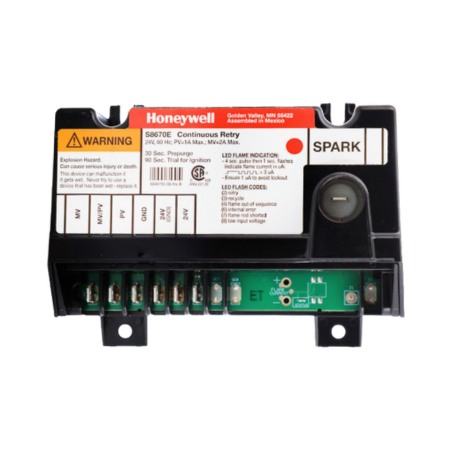

The Resideo S8670E3003 is a single-rod intermittent pilot ignition module that operates with 24 VAC at 60 Hz. This device -40 to 79°C (-40 to 175°F) ambient temperature range. CSA Listed.
Features:
The ignition module provides safety shutoff, electronic control, ignition sequences, and flame monitoring. This component is commonly used with natural or LP gas types.
The S8670E3003 is compatible with VR8204/VR8304 gas controls and Q345/Q3451 ignition hardware. It is suitable for use in boilers, gas-fired furnaces, and heating appliances.
| Ignition Trial Time | 90-Seconds |
|---|---|
| Between Trial Time | 5-Minutes Delay after Failed Trial for Ignition |
| Ignition System Type | Intermittent Pilot |
| Pre-Purge | 30-Seconds |
| Ambient Temperature Range | -40 to 79°C (-40 to 175°F) |
| Frequency | 60 Hz |
| Flame Failure Response Time | 2-Seconds Maximum |
| Voltage | 24 VAC |
| Gas Type | Natural or LP |
| Flame Sense | Single Rod |
Download Product Information:
Resideo S8600/S8610/S8660/S8670 Intermittent Pilot Module Installation Guide
