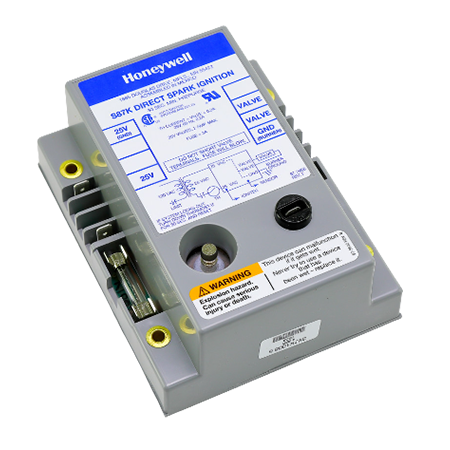

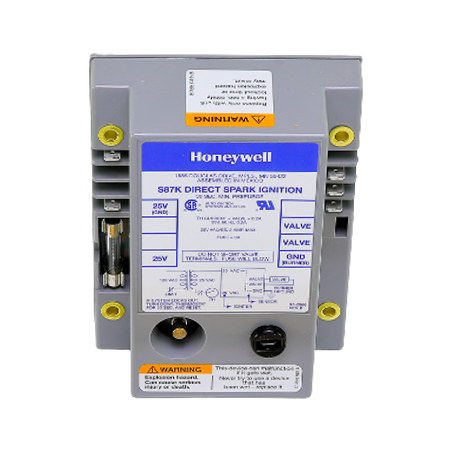

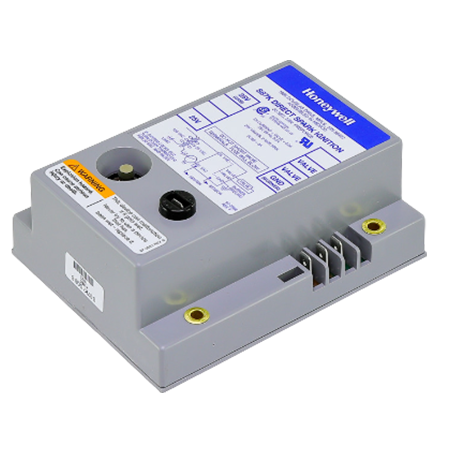

Honeywell S87K1008 DSI Ignition Module - Dual (Two Rod) Direct Spark Ignition

Name: Honeywell S87K1008 DSI Ignition Module - Dual (Two Rod) Direct Spark Ignition
Brand: Honeywell
SKU: S87K1008
Price: 378.95 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell S87K1008 DSI Ignition Module - Dual (Two Rod) Direct Spark Ignition

SKU: S87K1008

Brand:

Rating:

Quantity	Price	Stock
20 Usually Ships 1 - 2 Weeks	$378.95 /ea	20

Buy in Bulk & Save

Quantity	Price
5+	$356.36 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The S87K1008 is a direct spark ignition control module with a power rating of 25V, 60 Hz, and 2A amperage. It has a 4-second ignition trial time, a 30-second pre-purge time, 0.8-second flame failure re-ignition time. UL-listed & CSA-certified.

The two-rod ignition module is suitable for gas-fired furnaces, boilers, and heating applications with natural or LP gas. The unit it used to control the gas valve, monitor the main burner flame, and creates high voltage for spark ignition.

The S87K1008 is easy to install and mounted in any position with easy-to-access 1/4" male quick-connect terminals and a 1/4" diameter stud base for the ignition cable.

Voltage	25V
Amperage	2A
Frequency	60 Hz
Ignition Trial Time	4 seconds
Pre-purge Time	30 seconds
Flame Failure Re-Ignition	0.8 seconds
Ambient Temperature	-40°F to +175°F
Gas Type	Natural or LP Gas
Approvals	UL-listed & CSA-certified

Download Product Information:

Honeywell S87K1008 DSI Ignition Module Technical Datasheet

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

REPLACED A BAD S87K1008 WITH A NEW ONE. BURNER FIRED UP FOR 5 MINUTES AND SHUT DOWN. TESTED VOLTAGE TO GAS VALVE AND IT IS ONLY GETTING 2 VOLTS NOW. WHAT MAY HAVE HAPPENED? CALLED TECH SUPPORT ON BURNER AND THEY THINK IT WAS A BAD MODULE. HAVE A NEW MODULE TO INSTALL BUT DON'T WANT IT TO BLOW ALSO. ANY IDEAS?

Asked on October 24, 2017 by Charles from CLARION, PA.

1 Answers

Have an answer? Click Here

It is always advisable to have experienced and licensed technicians working on Direct Spark Ignition (DSI) systems. Often a poor ground connection will cause a safety shutdown of a burner. It is On this page you can find the Honeywell S87 user guide. Page 10 and 11 have Service and Troubleshooting information that you can share with your technician.

Replied on October 24, 2017 by Ori from Industrial Stores
