Honeywell S8610U3009 Universal Intermittent Pilot Control

Honeywell S8610U3009 Universal Intermittent Pilot Control
Images for general purposes only. Actual may be different than depicted.

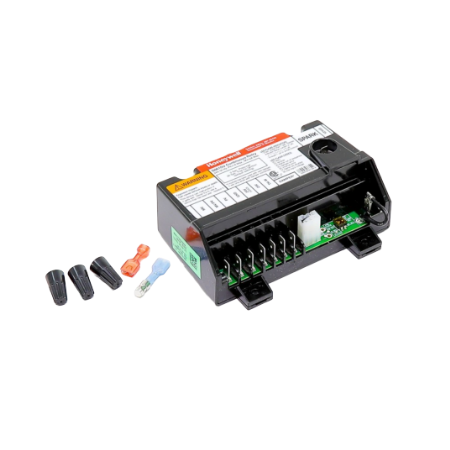

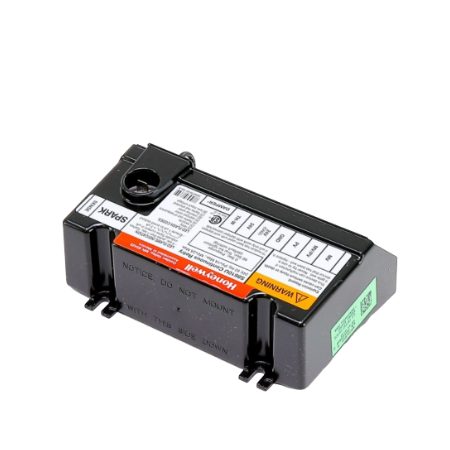

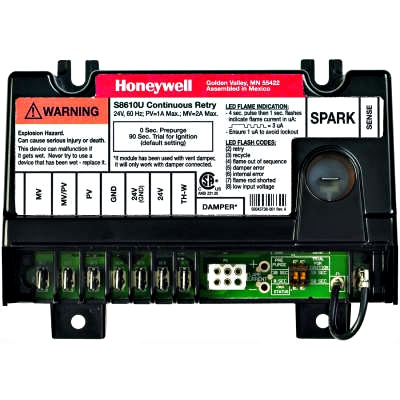

Honeywell S8610U3009 Universal Intermittent Pilot Control Honeywell S8610U3009 Universal Intermittent Pilot Ignition Module Honeywell S8610U3009  Pilot Gas Ignition Control

Honeywell S8610U3009 Universal Intermittent Pilot Control

SKU: S8610U3009
In Stock 871
Rating:
$135.45 /ea
Qty of 5 - $131.22 /ea
Qty of 10 - $127.00 /ea
0
$0.00
0
$0.00
0

The SUPER TRADELINE® S8610U Universal Intermittent Pilot Gas Ignition Control Module is designed to provide easy field replacement of a wide range of intermittent pilot ignition modules manufactured by Honeywell, Robertshaw, Johnson Controls, and others. The S8610U control provides ignition sequence, flame monitoring, and safety shutoff for intermittent pilot central furnaces, residential boilers, and other heating appliances. The S8610U replaces existing flame rectification type, intermittent pilot ignition modules with the following characteristics:

  • Single rod (local sense) or two rod (remote sense) flame sensing
  • Non-100 percent shutoff, 100 percent shutoff/lockout, or 100 percent shutoff/continuous retry
  • Natural or LP gas
  • Shutoff/lockout times of 15 seconds or longer
  • Prepurge configurable to 30 seconds or no prepurge
  • Pilot burners with flow rates of 1,500 Btuh or less
  • With or without integral damper connector
The SUPER TRADELINE® S8610U package contains complete, easy-to-use instructions, plus the accessories required to adapt the existing spark cable (Rajah, stud, nail, or other) to the spark terminal on the control module. It also help assure proper marking of the wires attached to the existing control and a label with LED code information that can be affixed in the appliance.

IMPORTANT
The S8610U control module is not designed to replace controls with:
— Flame sensing other than by flame rectification (White Rodgers Cycle-Pilot®, or Robertshaw thermal sensing)
— Standing pilot appliances
— Direct main burner ignition


The S8610U provides:
  • Natural or LP gas
  • Pilot burner ignition using an internally generated high voltage spark
  • Flame rectification circuit to monitor flame presence
  • Monitoring of 24 Vac, pilot, and main gas valve
  • Two LED indicators for flame presence/strength and system status/errors
  • EnviraCOM™ communication protocol for system diagnostics
  • Vent Damper connection
The S8610U is designed for a wide variety of natural or liquid propane fueled applications.
Igniter Sensor Type Separate (2-rod remote) or Combination (1-rod local)
Ignition Sequence Type Retry
Pre-purge Configurable (30-seconds or No pre-purge)
Voltage 24V
Ignition Trial Time 15-Seconds & 90-Seconds
Spark Generator Output 13 kV peak at 25 pF load
Thermostat Anticipator Setting 0.2A plus pilot valve rating plus main valve rating
Relative Humidity Rating 5 to 90% RH at 95°F
Flame Failure Response Time 0.8 sec at 1.0 mA flame current
Flame Current 1 uA minimum
