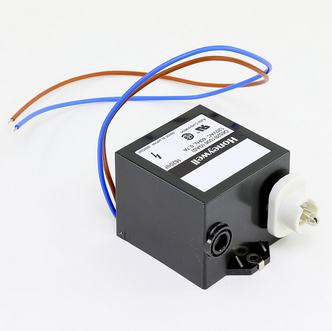

Honeywell Q652B1006 Solid State Ignitor Spark Generator

Honeywell Q652B1006 Solid State Ignitor Spark Generator
Images for general purposes only. Actual may be different than depicted.
Honeywell Q652B1006 Solid State Ignitor Spark Generator

Honeywell Q652B1006 Solid State Ignitor Spark Generator

SKU: Q652B1006
Rating:
* This Product is Now Obsolete
0
$0.00
0
$0.00
0

The Q652B Solid State Ignitor Spark Generator is a light-weight solid state spark generator (ignitor) for use on commercial and industrial gas burners.

Features:

  • Ignites interrupted gas pilots with ignition electrodes spacings between: — Q652B1006 0.029 to 0.125 inches (0.7 to 3.2 mm). — Q652B1014 0.12 to 0.18 inches (3 to 4.5 mm).
  • Q652B has 14.0 kV output peak voltage for reliable light-off.
  • Recommended for interrupted ignition applications only.
  • Mounts in the same space used by conventional ignition transformer.
  • Withstands 90% relative humidity at 104°F (40°C).
  • Weighs 1 pound (0.42 kilogram) versus up to 8-1/2 pounds (3.9 kilograms) for standard transformers.
  • Meets Underwriters Laboratories Inc. (UL) requirements for radio frequency interference (RFI).
Application Gas Ignition Transformer
Temperature Range 14 F to 113 F
Frequency 60 Hz
Operating Humidity Range (% RH) 90% RH
Voltage 120 Vac
