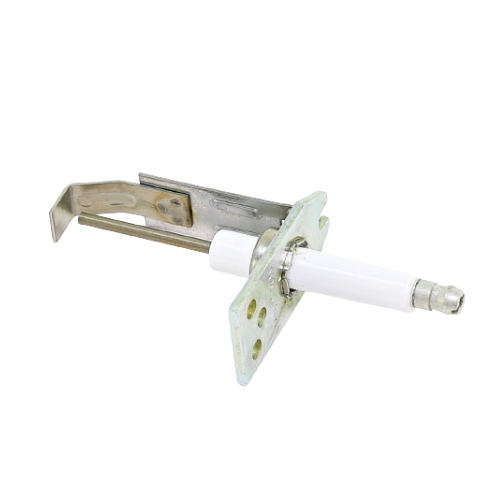

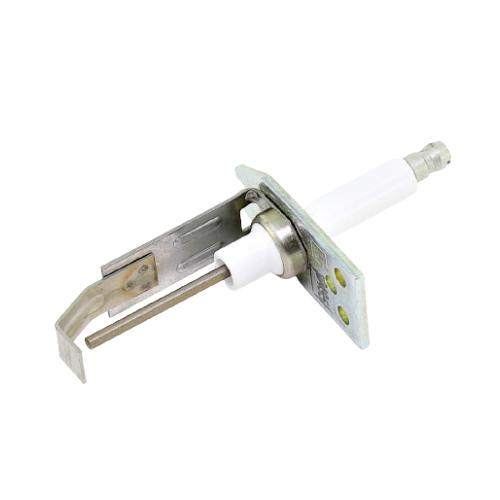

Honeywell Q347A1004 is a Spark Igniter measuring 2 1/32". The main function is to produce a spark or igniting the main burner. The igniter consists of an inner Kanthal electrode with a ceramic insulator, bracket, and ground strap. Easy to mount with its Bracket Style D which has one 3/16 in. (5 mm) slot and three 3/16 in. (5 mm) untapped screw holes.
The Q347A1004 is used with S87C Direct Spark Ignition Module, D, K; S89E, F, and Q354A Flame Sensor.
|Rod Angle||Standard Orientation|
