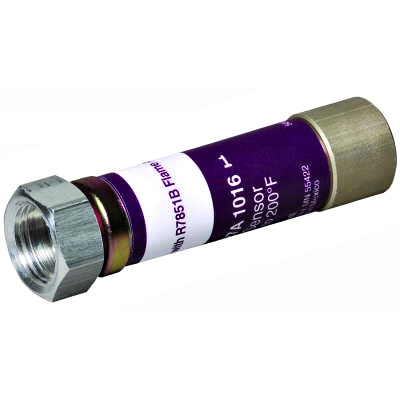

Honeywell C7927A1016 Electronic UV Flame Detector
The Solid State Ultraviolet Flame Detectors, sense ultraviolet radiation emitted by combustion flames. The flame detectors are used with Honeywell flame safeguard controls to provide flame supervision for gas, oil, or combination gas-oil burners.
Features: Properly installed the flame detectors are pressure rated for 5 psi. Flame detector is used with only the R7851B Flame Amplifier and the 7800 SERIES controls. Has an integral collar threaded (internal 1/2-14 NPSM) for mounting on a one-half inch sight pipe.
Applications: Gas, Oil, or combination burners-intermittent operation only(burner cycled at least once each 24 hours).
Ambient Temperature Range | -40 C to +93 C (-40F to +200F) |
---|---|
NEMA Rating | NEMA 1 |
Download Product Information:
Honeywell Minipeeper C7927A Minipeeper UV Flame Detector Data Sheet
