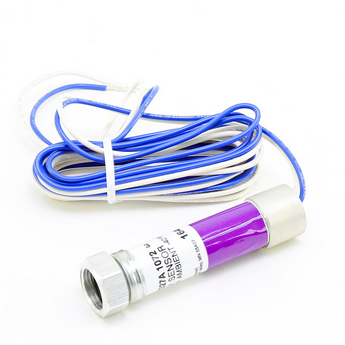

Honeywell C7027A1072 Minipeeper Ultraviolet Flame Detector

Name: Honeywell C7027A1072 Minipeeper Ultraviolet Flame Detector
Brand: Honeywell
SKU: C7027A1072
Price: 382.74 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell C7027A1072 Minipeeper Ultraviolet Flame Detector

SKU: C7027A1072

Brand:

Rating:

Quantity	Price	Stock
169 Usually Ships 1-2 Weeks	$382.74 /ea	169

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell C7027A1072 Minipeeper Ultraviolet Flame Detector

Compact flame detector for use with flame safeguard controls with ultraviolet amplifiers. The C7027A, C7035A, and C7044A detect ultraviolet radiation emitted from all flames. They are used with flame safeguard controls to provide supervision for gas, oil, or combination gas-oil burners.

Features:

Use with Honeywell Flame Safeguard primary safety controls and burners requiring ultraviolet flame detection.
C7027 mounts on a 1/2 in. sighting pipe by using an integral collar.
Detectors can be wired in parallel for difficult sighting applications.
C7027 seals against pressures up to 5 psi (34.5kPa) when correctly installed.
Allows for blast tube mounting due to compact size.
C7044 mounts with a two screw bracket.
The C7044 UV sensor tube is enclosed in a stainless steel housing.
C7044 has the capability of side or end viewing in flame monitoring applications.

Ambient Temperature Range	-40 F to 215 F (-40 C to 102 C)
Dimensions	1-1/16" diameter x 4" long (27mm diameter x 102mm long)
Used With	Flame Amplifiers: R7249A, B, R7849A, B, R7749B, R7259, R7290
Mounting	Integral nut for 1/2" sighting pipe
Lead Length	96" (2438mm)
Approvals	UL, CSA, Swiss RE, FM

Download Product Information:
