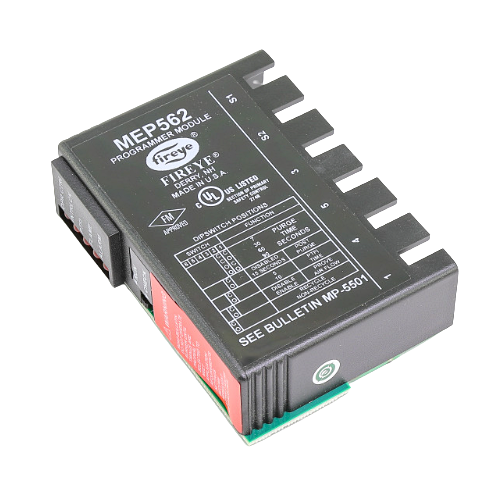

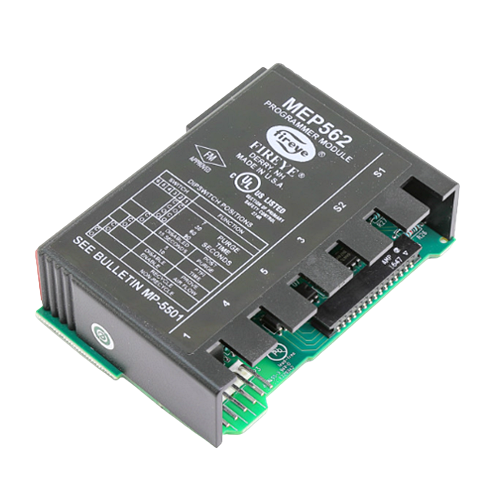

Fireye MicroM MEP562 Programmer Module 8-second Pilot Stabilization 10-second MTFI

Fireye MicroM MEP562 Programmer Module 8-second Pilot Stabilization 10-second MTFI
Images for general purposes only. Actual may be different than depicted.
Fireye MicroM MEP562 Programmer Module 8-second Pilot Stabilization 10-second MTFI Fireye MEP562 Programmer Module with Lockout on Loss of Air Flow

Fireye MicroM MEP562 Programmer Module 8-second Pilot Stabilization 10-second MTFI

SKU: MEP562
Rating: (1)
Quantity Price Stock
18
18
$394.22     /ea
18
0
$0.00
0
$0.00
0
MEP562
The Fireye MEP562 is a programmer module with dipswitches that allows selection of purge time, post purge, Air Flow Proven Open at Start, and 5/10 second Pilot Trial for Ignition (PTFI) Timing.  The module locks out on loss of airflow and includes a check/run switch to help in testing size and pilot stabilization.  An 8-second pilot stabilization period and 10-second main trial for ignition are also provided.  The unit is only applicable for Non-recycle operations.

The Fireye Programmer Module is designed to easily monitor and control the MicroM Modular Chassis.  The module features LED indicator lights that show the current operating status and give diagnostic codes during a lockout.  The module can be easily installed with the plug-in design.  UL listed and FM approved.

The MEP562 is compatible with the following MicroM Models:

  • MEC120
  • MEC120D
  • MEC120R
  • MEC120RC
  • MEC120RD
  • MEC120C (120 VAC)
  • MEC230 (230 VAC)



Purge Time 7, 30, 60, 90 seconds
Pilot Stabilization 8-seconds
Main Trial for Ignition 10-seconds
Operation Non-recycle
Approvals UL Listed and FM Approved

Following are the Attached files for this product:

Fireye MEP562 Programmer Module Technical Datasheet
