COFI Ignitions TAR10 Ignition Transformers TRE820PISO4 115V Primary 1.9/1.4 Amp 50/60Hz

COFI Ignitions TAR10 Ignition Transformers TRE820PISO4 115V Primary 1.9/1.4 Amp 50/60Hz
Images for general purposes only. Actual may be different than depicted.
COFI Ignitions TAR10 Ignition Transformers TRE820PISO4 115V Primary 1.9/1.4 Amp 50/60Hz COFI Ignitions TAR10 Ignition Transformers TRE820PISO4 115V Primary 1.9/1.4 Amp 50/60Hz

COFI Ignitions TAR10 Ignition Transformers TRE820PISO4 115V Primary 1.9/1.4 Amp 50/60Hz

SKU: TAR10
In Stock 3
Rating:
$117.00 /ea
0
$0.00
0
$0.00
0

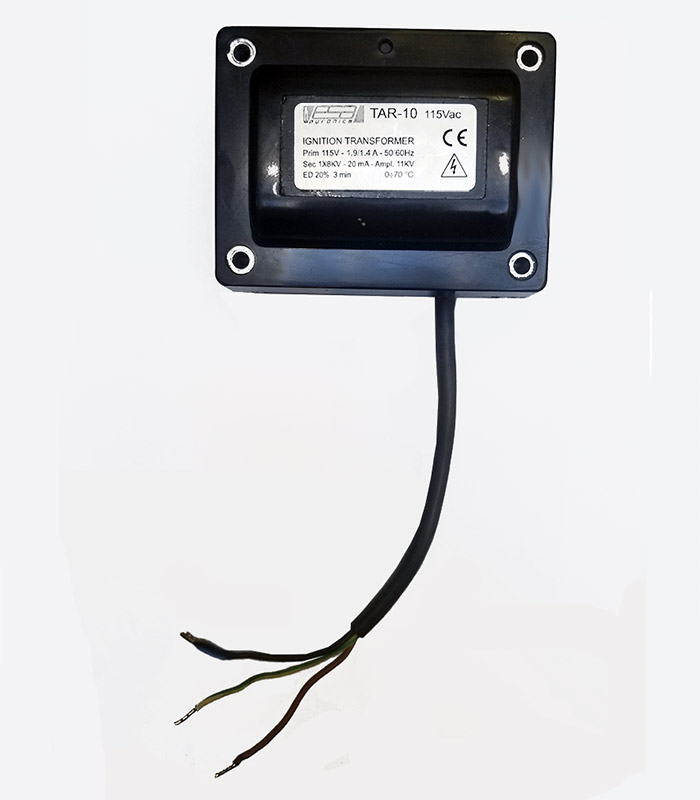

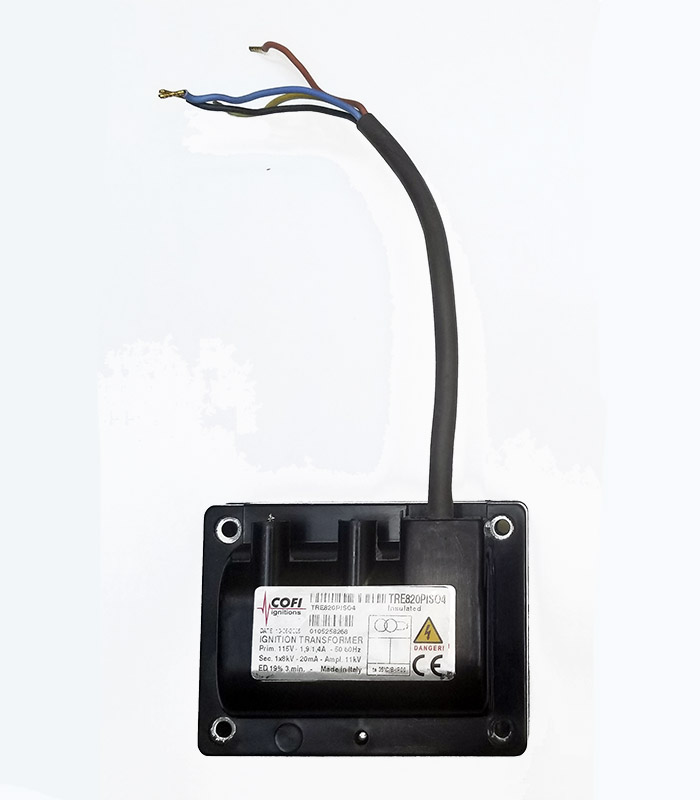

The ESA Pyronics TAR-10 is manufactured by COFI Ignitions and replaces the COFI transformer TRE820PISO4 has a primary voltage of 115 VAC and operates at amperages of 1.9/1.4 @ 50/60Hz. This transfomer is typically used in ESA/Pyronics ESTRO flame safeguards.

The TRE Series is a small dimension transformer, it achieves the same performances of medium size transformers with lower costs, largely used for oil and gas burners, available with the secondary insulated for flame detection by ionization of the flame. It can also be applied to anti-mosquito equipment or ozone generators.

Features:

• Primary voltage: 115 / 230 V
• Frequency: 50 / 60 Hz
• Secondary voltage: 1 x 8000 V
• Primary current: 2 / 1 A
• Secondary current: 20 mA
• Power consumption: 220 VA
• Intermittence every 3 minutes: 20%
• Mass: 1.3 kg
• Length of supply cable: 38 cm
• H.T. connection: self-threading
• Type of H.T. cable siliconic (external diameter 7 mm)
• Max length of H.T. cable: 1 meter (max 2 m)
• Working temperature: 0 ÷ 70 °C
• Transformer function : ignition and detection
• Mounting position: any
Primary Voltage 115-230V
Frequency 50/60Hz
Secondary Voltage 1x 8000V
Primary Current 2/1A
Secondary Current 20mA

Following are the Attached files for this product:

TAR10 Ignition Transformer Datasheet
