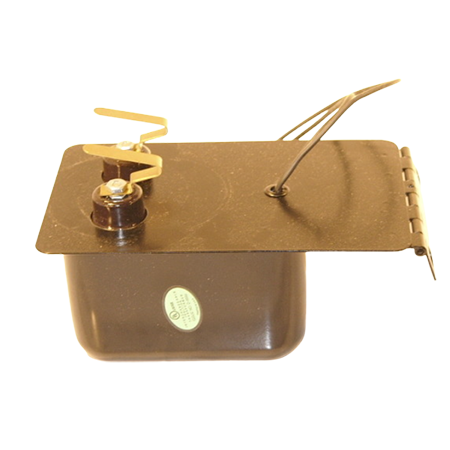

Allanson 2721-448 Ignition Transformer for Nu Way Large Plate

Allanson 2721-448 Ignition Transformer for Nu Way Large Plate
Images for general purposes only. Actual may be different than depicted.
Allanson 2721-448 Ignition Transformer for Nu Way Large Plate

Allanson 2721-448 Ignition Transformer for Nu Way Large Plate

SKU: 2721-448
Rating:
Quantity Price Stock
1
Usually Ships 1 - 2 Weeks
$101.83     /ea
1
0
$0.00
0
$0.00
0
2721-448

The 2721-448 is an ignition transformer that has a power rating of 120V primary voltage and 10,000V secondary voltage.  It has a -40 to 80°C storage temperature, a -30 to 40°C operating temperature, and 90% operating relative humidity.  CSA-certified.

The ignition transformer is suitable for commercial, residential, and industrial oil applications.  The unit is constructed to provide a consistent operation that is ideal as an excellent ignition source.

The 2721-448 is quick and easy to install with buss bar contact HV terminals.  It is designed with single porcelain and high-temperature wire that creates cooler, silent, and safe operation for all types of burners.

Secondary Voltage 10,000
Supply Voltage 120V
Frequency 60 Hz
Amperage 250 VA
Secondary Short Circuit Current 23 mA
Storage Temperature -40 to 80°C
Operating Temperature -30 to 40°C
Operating Relative Humidity 90%

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
what are the dimensions of the mounting plate on 2721-448 also on the 2721-572
Asked on Nov 14, 2017 by Victor from Westminster, Co
1 Answers

Have an answer? Click Here

A:
We do not have any dimensional specifications for either of the transformers for the Nu Way burners. All available technical details are found in the downloads on our website, however there are no dimensional drawings or measurements listed.
Replied on Nov 15, 2017 by Ron from Industrial Stores
