Allanson 1092-NA Ignition Transformer For North American

Allanson 1092-NA Ignition Transformer For North American
Images for general purposes only. Actual may be different than depicted.
Allanson 1092-NA Ignition Transformer For North American Allanson 1092-NA Ignition Transformer For North American Genuine Allanson 1092-NA Gas Ignition Transformer 120Vac 6000Vac

Allanson 1092-NA Ignition Transformer For North American

SKU: 1092-NA
Rating: (2)
Quantity Price Stock
18
Usually Ships 1 - 2 Weeks
$131.66     /ea
18
0
$0.00
0
$0.00
0
1092-NA

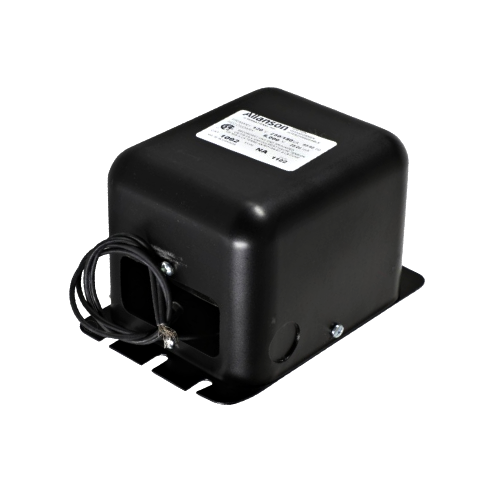

The Allanson 1092-NA is a single-pole ferromagnetic ignition transformer used for North American type Gas Burner.  The primary voltage is 120Vac and 6000Vac for the second voltage.  Operates 25/20mA current with 50/60Hz input frequency.

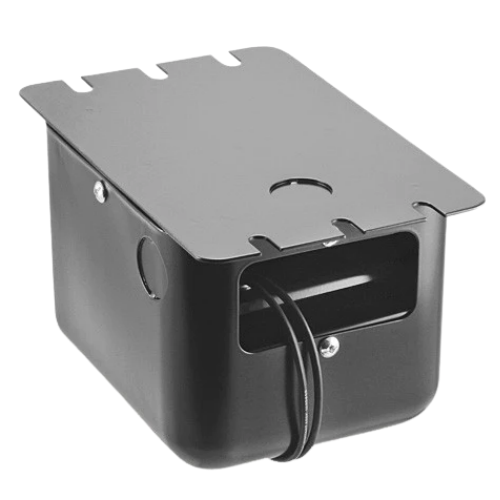

The 1092-NA has one end ground and is enclosed in a junction box.  This transformer is applicable for residential, commercial, and industries that utilize gas equipment.  It is constructed to be reliable, safe, provide constant duty, and quiet operation.

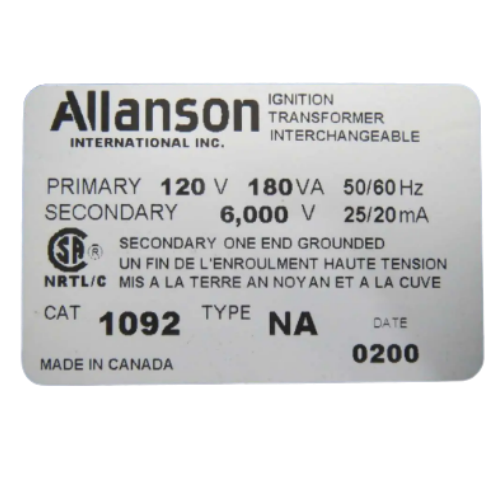

Input Voltage 120Vac
Secondary Voltage 6000Vac
Secondary Short Circuit Current 25/20mA
Input Frequency 50/60Hz
Loading Air Gap 1/16”-1/8"
Operating Relative Humidity 90%
Operating Temperature -30C to +40C
Junction Box Internal
Hv Terminal Rajah Connector
Approval CSA

By Brian

from Wilton IA

Yes, I would recommend this product to a friend or co-worker

5.0 good service quick efficient

Product is of good quality and received in good condition


By Brian

from Wilton IA

Yes, I would recommend this product to a friend or co-worker

5.0 good service quick efficient

Product is of good quality and received in good condition

Q & A: Ask the Questions, share answers

Do you have questions about this product?
