Allanson 1092-F Ignition Transformer For Gas Applications

Allanson 1092-F Ignition Transformer For Gas Applications
Images for general purposes only. Actual may be different than depicted.

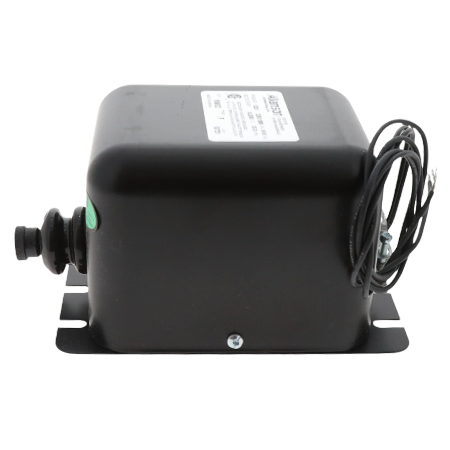

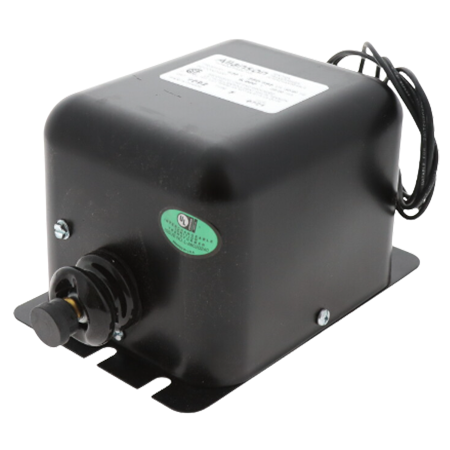

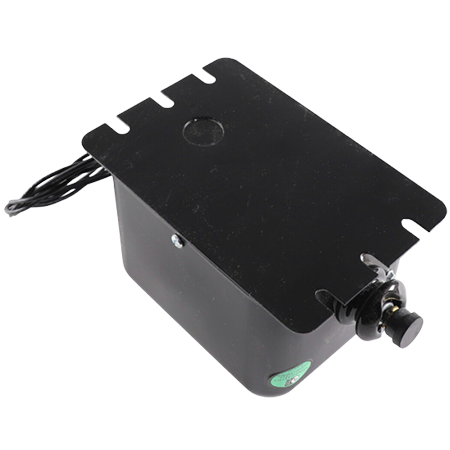

Allanson 1092-F Ignition Transformer For Gas Applications Allanson 1092-F Ignition Transformer 120V Allanson 1092-F Ignition Transformer 6000V Secondary

Allanson 1092-F Ignition Transformer For Gas Applications

SKU: 1092-F
Rating:
Quantity Price Stock
46
Usually Ships 1 - 2 Weeks
$131.66     /ea
46
0
$0.00
0
$0.00
0
1092-F

The 1092-F is a single-phase ignition transformer that operates at 120V input, 6000V secondary voltage, and 50/60 Hz frequency.  It has a -30 to 40°C operating range, 90% operating relative humidity, and a 1/16" to 1/8" loading air gap.  UL-recognized and CSA-certified.

The ignition transformer is suitable for commercial and industrial gas applications.  The unit is used to provide a high-energy spark to the ignition electrode rod to light up the flame.  The SC2100 testing equipment accessory is also available.

The 1092-F directly replaces Webster 612-6A7 and France 6EEGW-2.

Operating Relative Humidity 90%
Amperage 30A
Approvals UL-recognized and CSA-certified
Voltage 120V
Frequency 50/60 Hz
Primary Voltage 150VA
Secondary Voltage 6000V
Secondary Short Circuit Current 25/20 mA
Operating Temperature Range -30 to 40°C
Loading Air Gap 1/16" to 1/8"

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
I have an Allanson 1092-F ignition transformer being installed into a UL 508A industrial control panel but I can't find any information about it being UL certified. Is this part UL certified and if so where can I find this information.
Asked on Mar 10, 2022 by Chris from Wilmington, Delaware
1 Answers

Have an answer? Click Here

A:
The Allanson 1092-F Transformer is a UL Recognized component indicated by the mark:

We have updated the literature indicating this information and it can be found on the product page under the "Technical Data" section or by clicking here.
Replied on Mar 14, 2022 by Brian from Industrial Stores
